ADU LIBRARY
Free, downloadable design packets for accessory dwelling units. Browse, click into any scheme to view drawings and download the full design toolkit.
01 · WHAT'S YOUR CONSTRUCTION BUDGET?
Build cost varies by location, year, and builder, so we use qualitative tiers. Pick the level that best matches your means.
02 · HOW MANY BEDROOMS?
"Bedroom" means a fully enclosed sleeping room. Lofts count as a sleeping space but not a bedroom for code purposes.
03 · LOT ORIENTATION
Which direction does the long axis of your buildable area run?
04 · ANYTHING YOU MUST HAVE?
Pick any features that are non-negotiable. Leave blank if you're flexible.
BEDROOMS
STAIR
COST TIER
FEATURES
EDITION 01
ESSENTIAL
2 / 2 DESIGNS
The smallest envelopes, the lowest construction cost. One bedroom, ladder stair to access a loft. Designed to be the easiest possible introduction to building a small home.

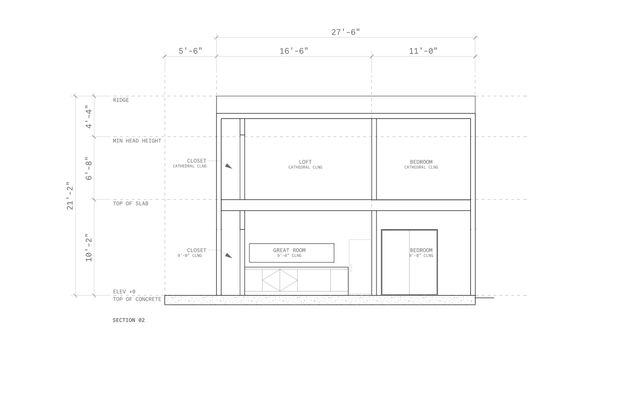

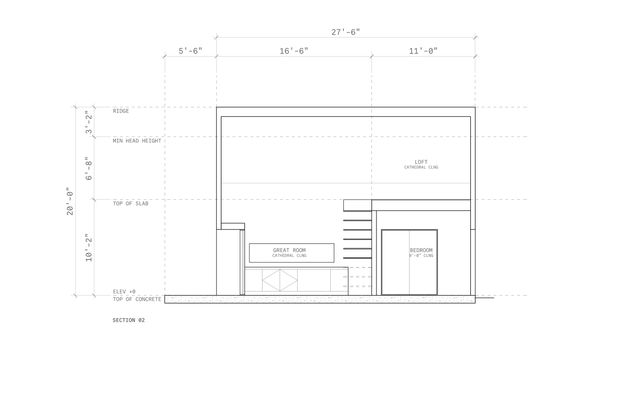

ADU_0101: GABLE
LOW COST TIER1 BR / 1 BA + LOFT 592 SQFT
FOOTPRINT 21×33 FT STAIR LADDER-INT

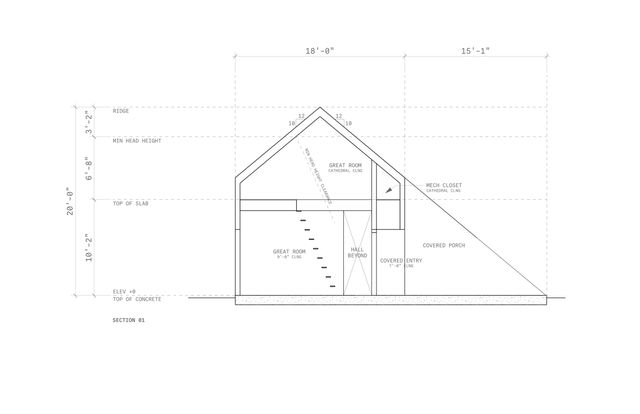

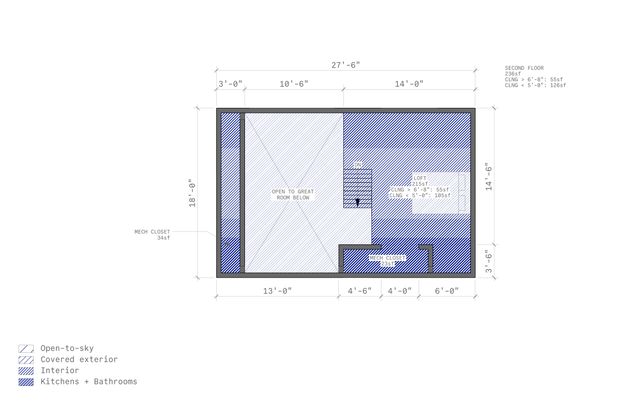

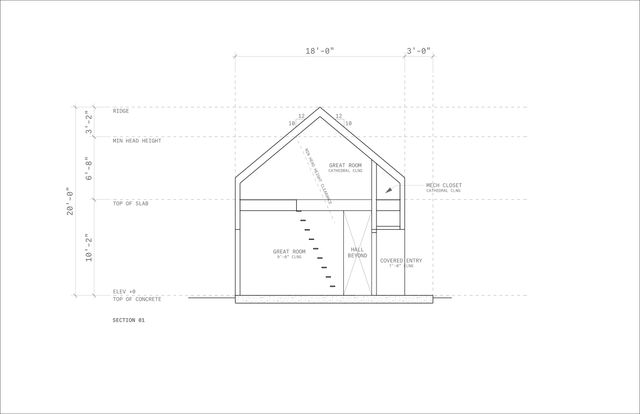

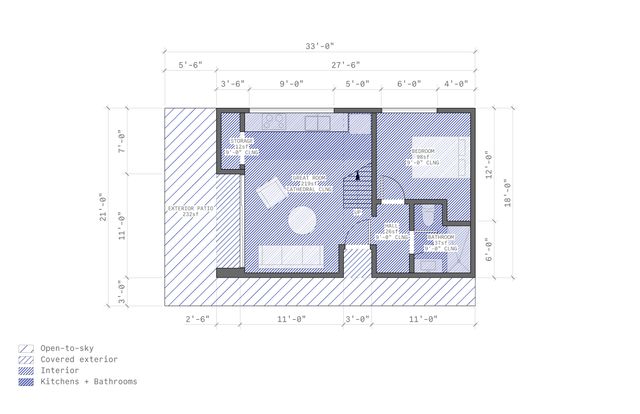

A simple one-bedroom home under a gable roof, with an open great room, a ground-floor bedroom and bath, and a sleeping loft above.

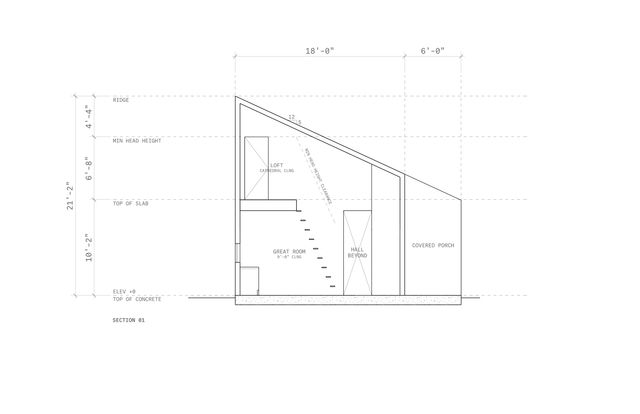

ADU_0102: GABLE + SHADE
LOW COST TIER1 BR / 1 BA + LOFT 592 SQFT
FOOTPRINT 33X33 FT STAIR LADDER-INT

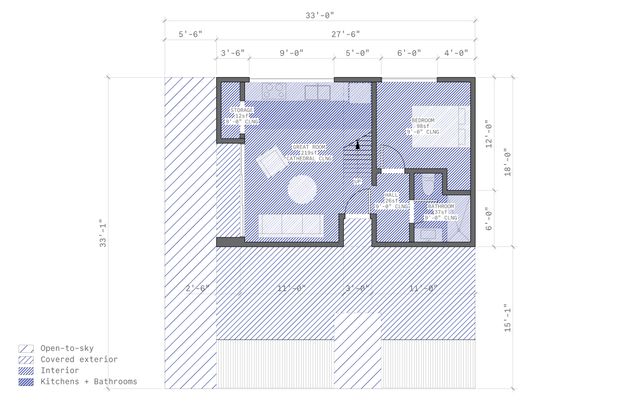

The Gable plan with one roof slope extended into a deep covered porch — same interior, plus a shaded outdoor room running along the length of the house.
EDITION 02
STANDARD
2 / 2 DESIGNS
Two bedroom configurations with the spatial generosity of two stories — separate sleeping and living, a more grown-up plan, room for a deck.

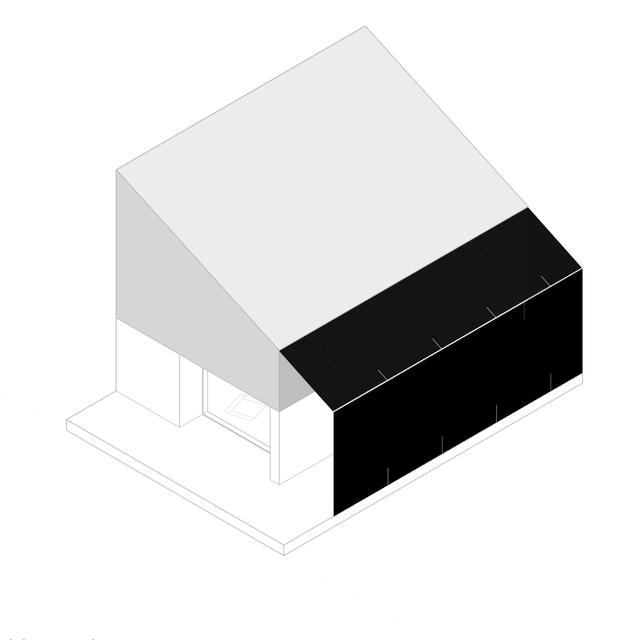

ADU_0202: SHED + SHADE
LOW COST TIER2 BR / 1 BA 657 SQFT
FOOTPRINT 21X33 FT STAIR LADDER-INT

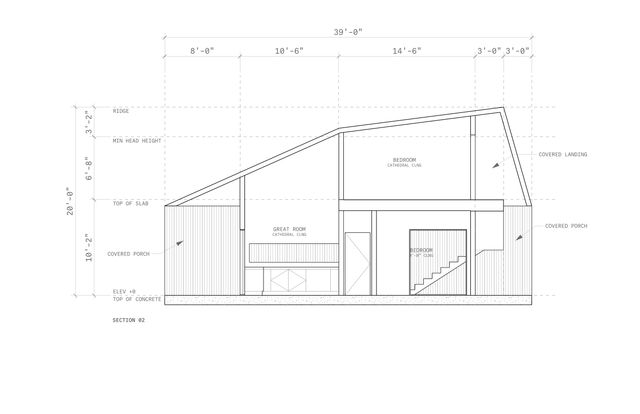

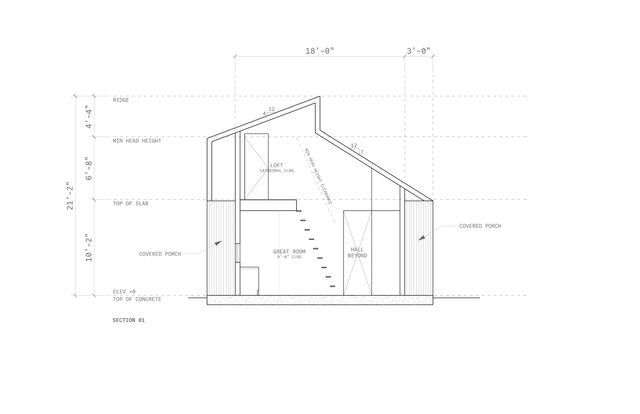

A two-bedroom home under a single shed roof that extends out to form a deep covered porch — simple to build, with a real second bedroom upstairs.
ADU_0303: MONITOR + WRAPAROUND PORCH
MEDIUM COST TIER2 BR / 1 BA 630 SQFT
FOOTPRINT 24X36 FT STAIR LADDER-INT

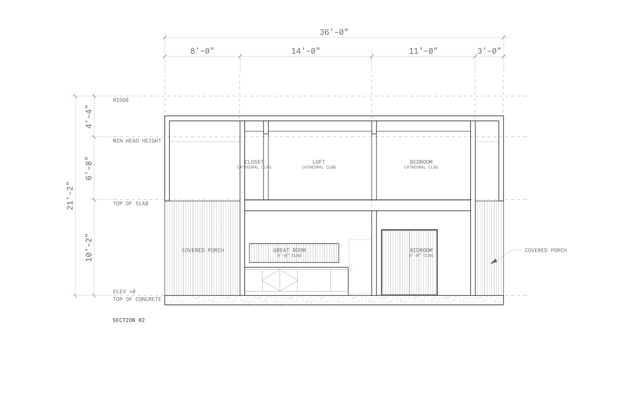

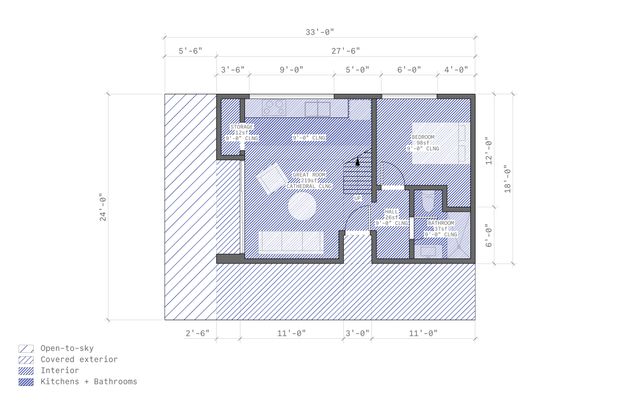

A two-bedroom home under a monitor roof with clerestory windows and covered porches on all four sides — maximum natural light and shaded outdoor space.
EDITION 03
PLUS
3 / 3 DESIGNS
Two enclosed bedrooms, exterior stairs, and the most architectural ambition. For property owners building a house as a long-term rental, multi-generational housing, or a primary creative space.

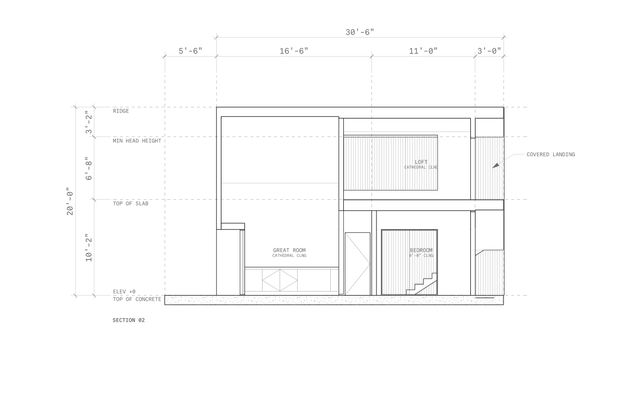

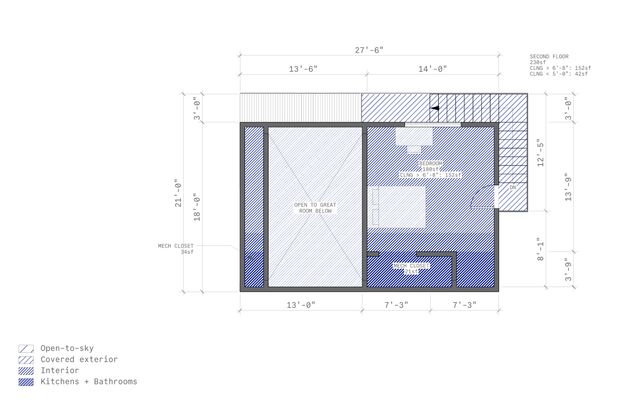

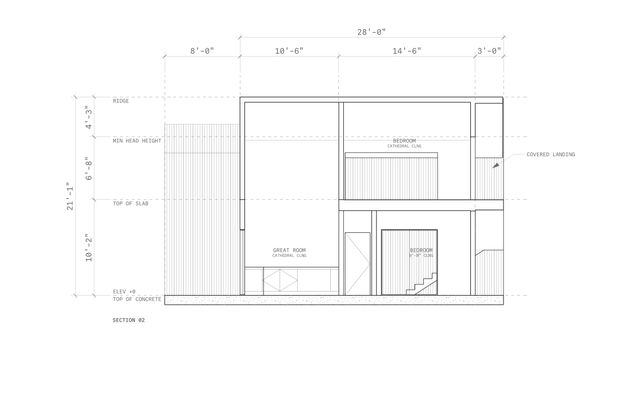

ADU_0104: GABLE + STAIR + ADAPTIVE
HIGH COST TIER2 BR / 1 BA 607 SQFT
FOOTPRINT 21X28 FT STAIR FULL-EXT

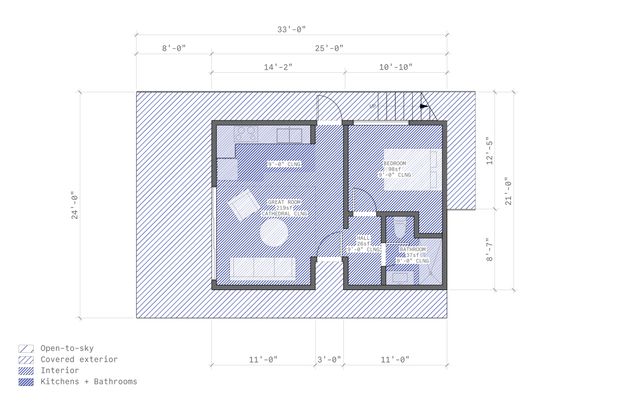

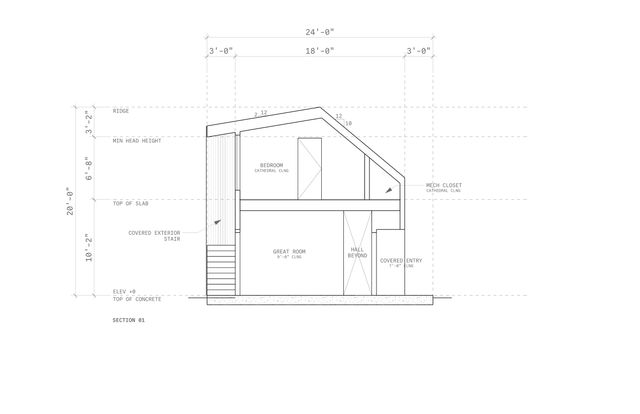

A two-bedroom home with a great room and a second upstairs room with its own exterior stair — usable as a quiet office, studio, or extra bedroom.
ADU_0304: MONITOR + STAIR + ADAPTIVE
HIGH COST TIER2 BR / 1 BA 602 SQFT
FOOTPRINT 24X33 FT STAIR FULL-EXT
A two-bedroom home under a monitor roof with clerestory windows above, plus an upstairs room reached by its own exterior stair — ideal as an office or studio.

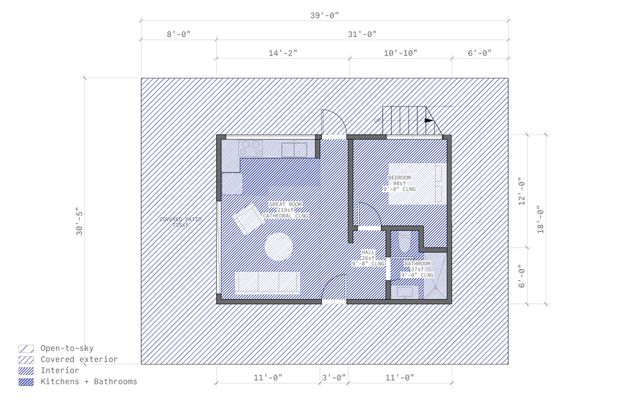

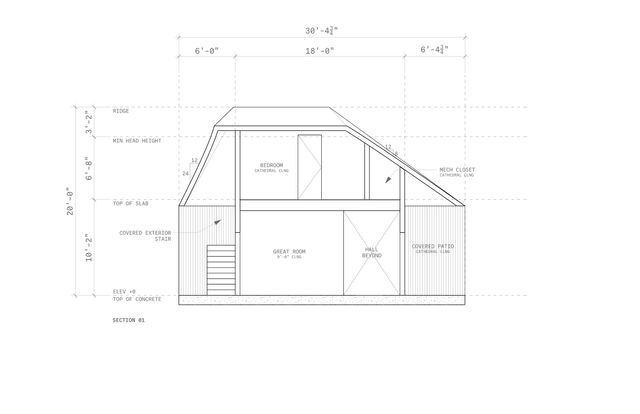

ADU_0404: SHELL + STAIR + ADAPTIVE
HIGH COST TIER2 BR / 1 BA 602 SQFT
FOOTPRINT 31 X 39 FT STAIR FULL-EXT
A two-bedroom home wrapped on all four sides by a sweeping "shell" roof creating continuous shade, with an upstairs room reached by exterior stair — ideal as an office.
FOR PAST CLIENTS
2 / 2 DESIGNS
Small homes designed for past clients who have already built an ADU with us.

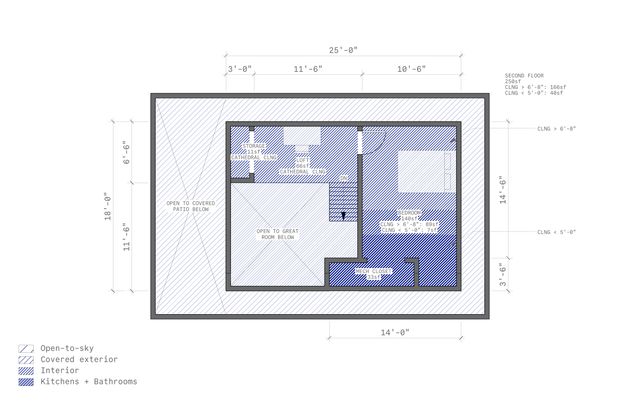

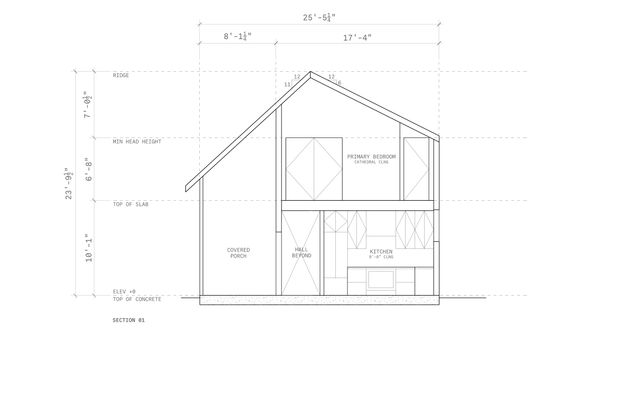

ADU_0501: MISHPOCHA WOODS 01
HIGH COST TIER1 BR / 1.5 BA 1098 SQFT
FOOTPRINT 25X31 FT STAIR FULL-INT

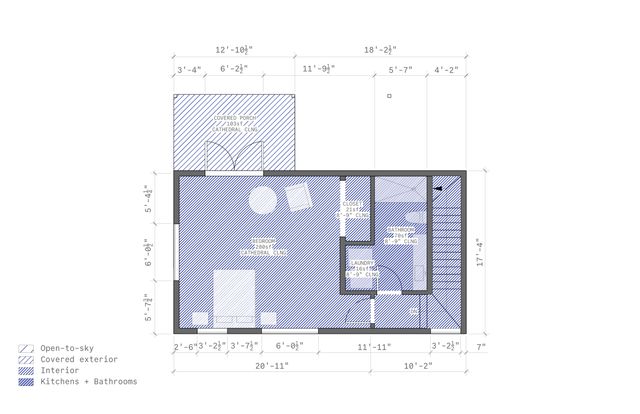

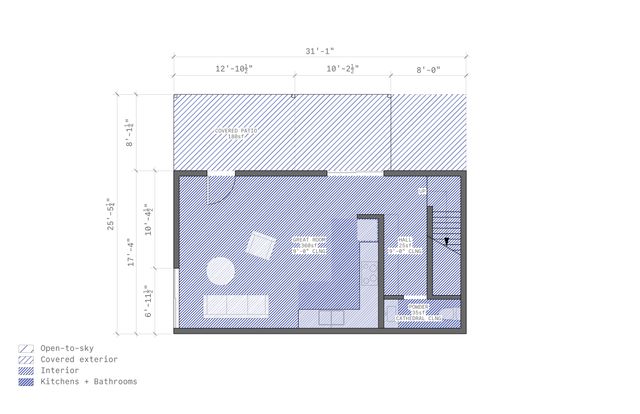

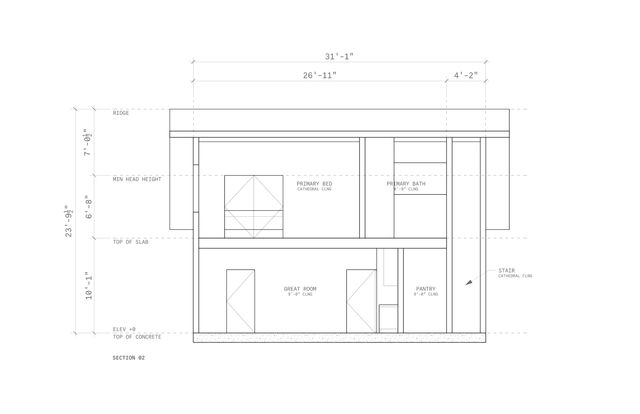

A full two-story one-bedroom home with a covered patio downstairs, an upstairs primary suite under cathedral ceilings, and an upper-level covered porch.

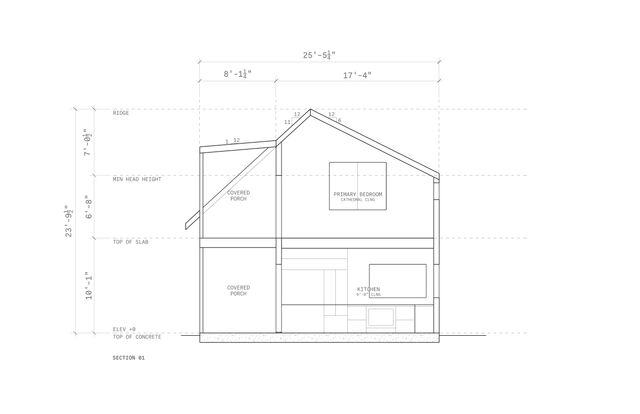

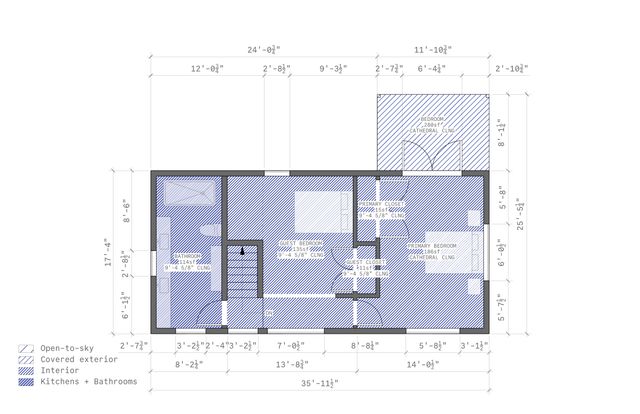

ADU_0502: MISHPOCHA WOODS 02
HIGH COST TIER2 BR / 1.5 BA 1264 SQFT
FOOTPRINT 26 X 36 STAIR FULL-INT
A two-story two-bedroom home with an open kitchen and living room downstairs, a covered porch, and a full primary suite plus a guest bedroom upstairs.
SIDE-BY-SIDE COMPARISON
